KF11
1. Power supply: solar cell (monocrystalline silicon) 2V/280MA
2. Energy storage device: NimH rechargeable battery 1.2V/1200MAH Ni-MH normal temperature battery
3. Working time: under the standard light intensity, 8H can continuously support 72H
4. Material: PC + ABS
5. Display device: φ5 super bright anti-fog LED, LED light color can be customized

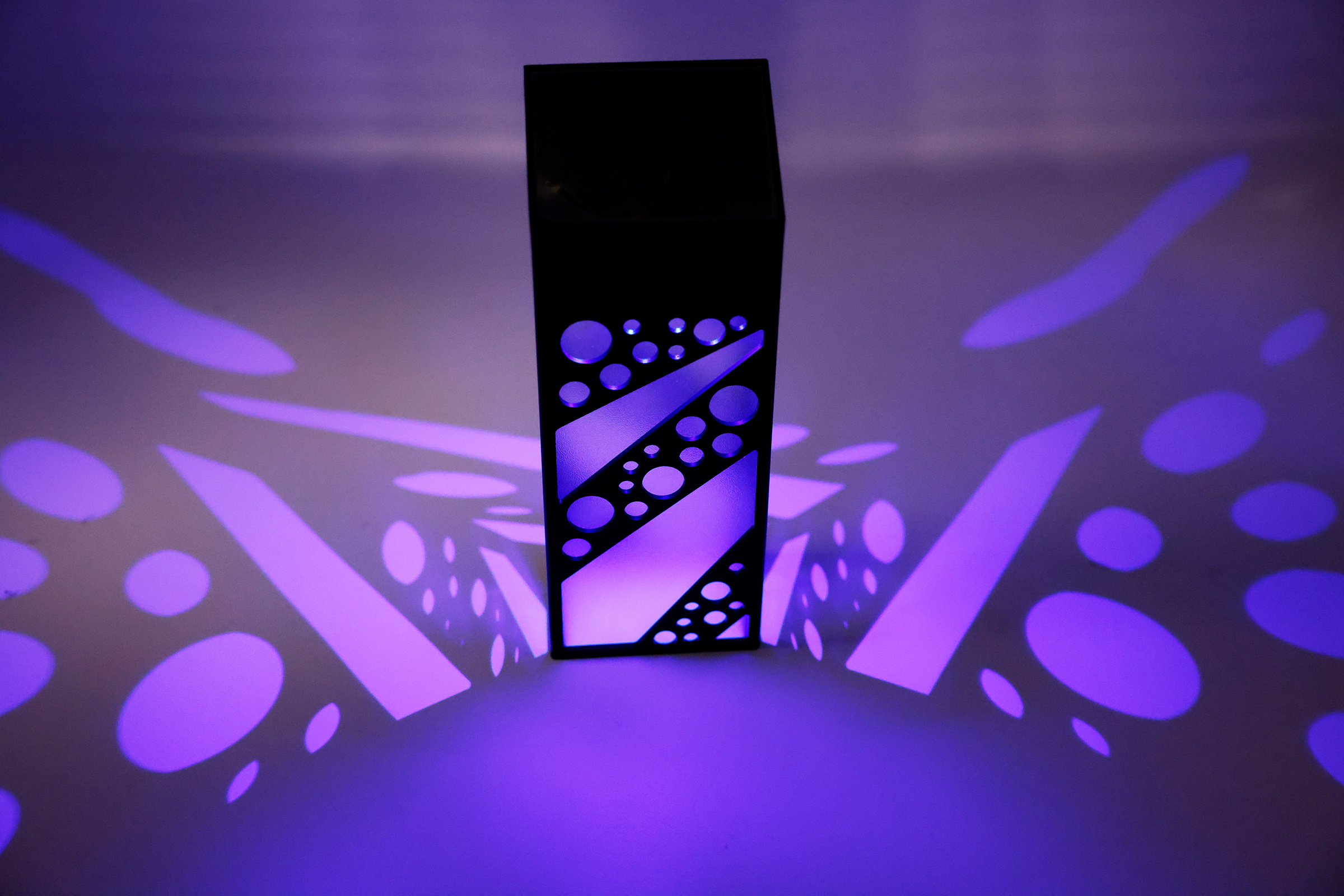

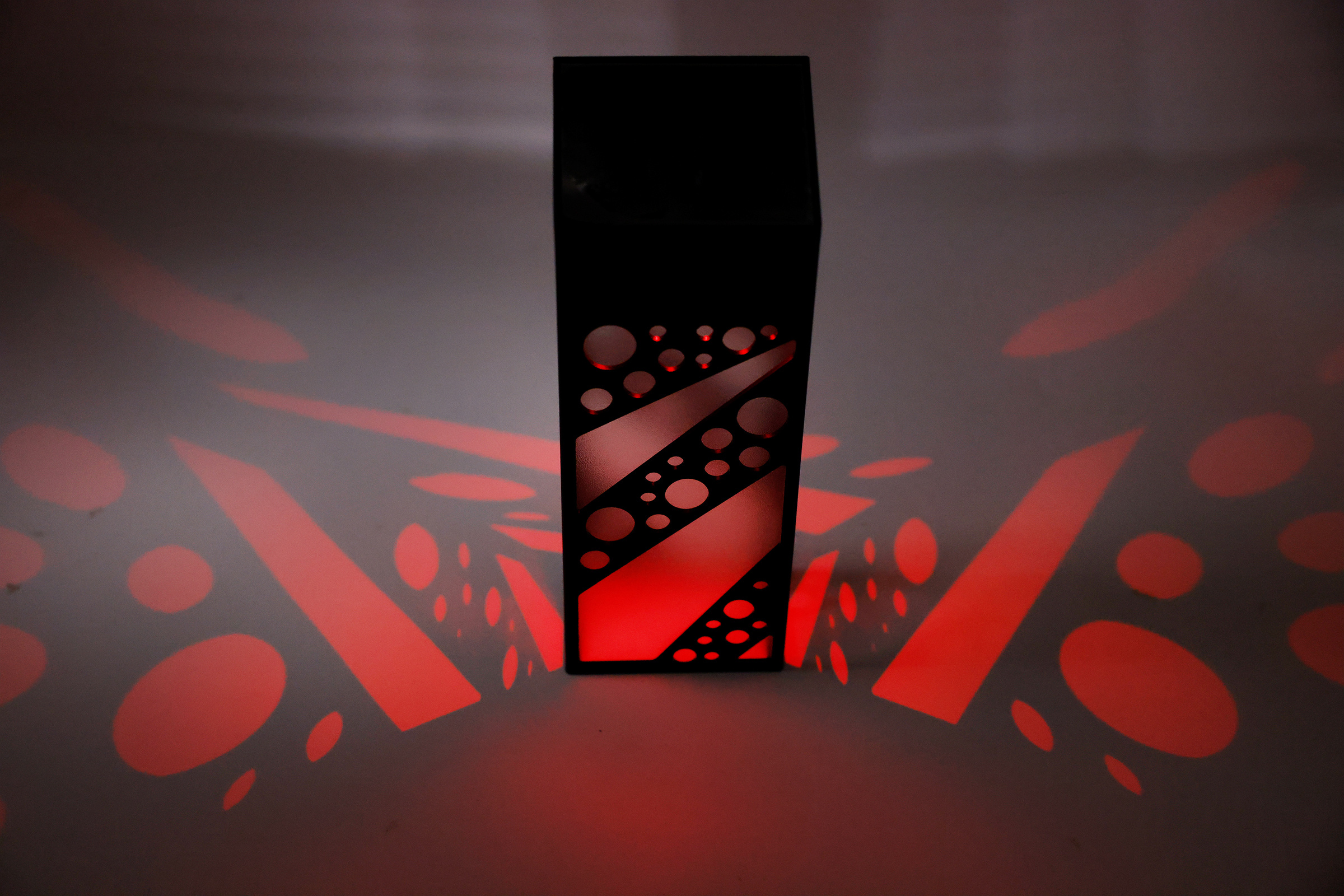

6. Working mode:(2Hz ± 20%) stable + RGB 2LED beads: 2
7. Control light intensity: positive light is less than 50Lux
8. Sight distance:>500 meters
9. Service life: effective use> 3 years
10. Working environment:-20 ℃ ~ +60 ℃
11. Specifications 55*82*220mm
12.220g (weight)
Product features:
Automatically turn on/off the solar light automatically turns on at night/dark, and turns off automatically in daytime/bright areas. The lamp has a continuous lighting mode (no motion sensor) and a built-in rechargeable battery. During the day, it is directly charged by the sun for 5-8 hours, and it is automatically lit for 8-12 hours at night. Battery life over 40H

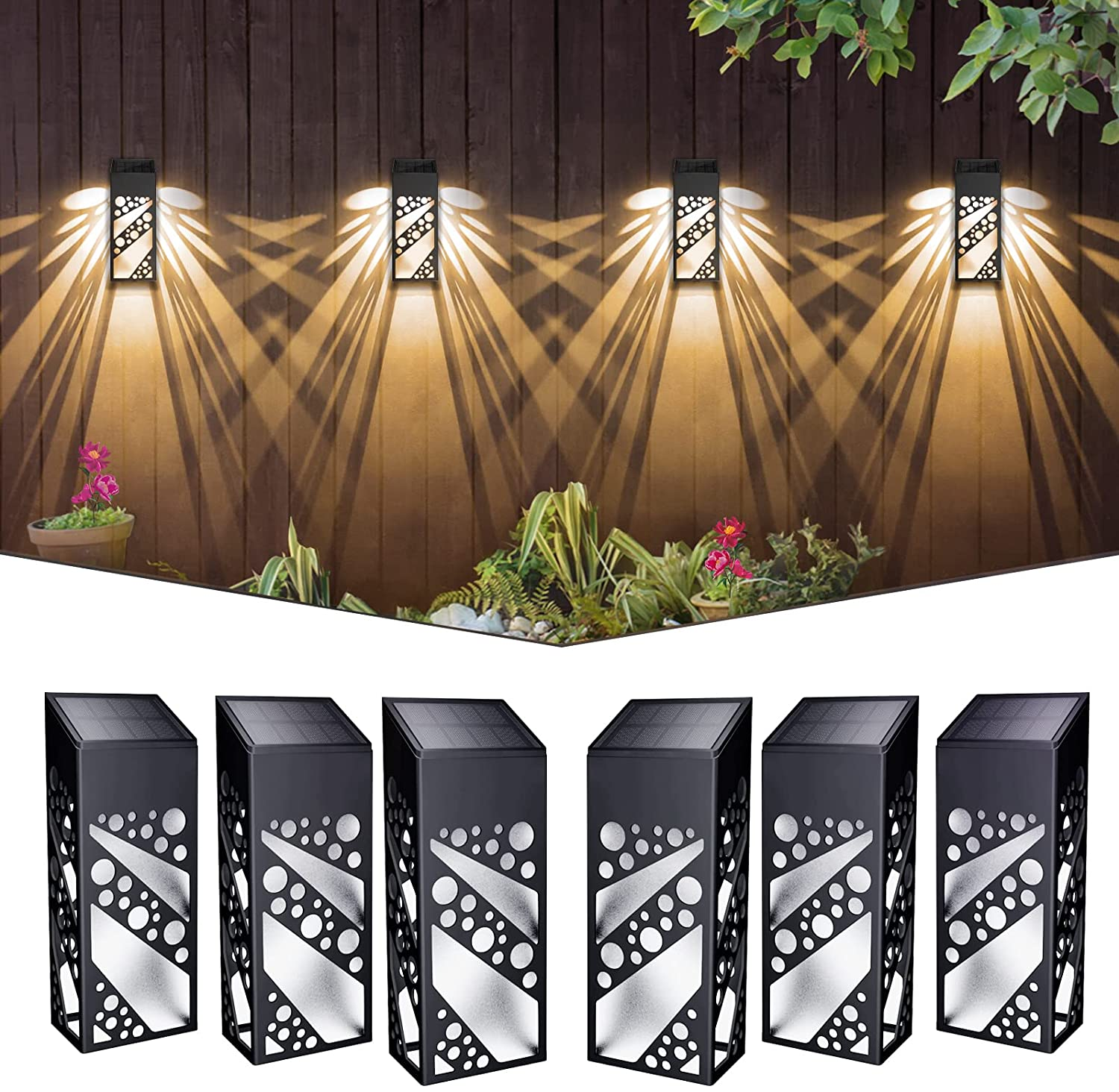

Our decorative solar outdoor lights have a unique lampshade that looks like a butterfly, providing fantastic lighting effects for your garden, courtyard, fence, courtyard, trail, driveway, stairs, etc. It will not be too bright (20LM), and the proper light will not disturb the neighbors.
The KF11 guardrail post solar light is made of high-intensity ABS and can be used in rainy or other extreme weather. [Save time] Easy to install, you can use the attached screws to install the lamp in any outdoor position. No cables or wires are required. Ideal for use in areas without sockets. Save money and environmental protection: solar energy, no electricity and other pollution.
Key words:
Xinheyue
Classification:
Product Details
| Solar lamp product information table | |||||||||||
| Purchaser (Party A) | Name of Supplier (Party B) | NEW Heyue Technology Limited | |||||||||
| Product Name | Solar Fence Lights/Fence Lights | Product Number | CDN-KF11 | ||||||||
| Type of finished product certification | Appearance patent | Finished Product Certificate No. | |||||||||
| Battery Certification Type | MSDS | Battery Certificate Number | MNIKHTLT04103716 | ||||||||
| Specifications | 1 | Product size | 82*55*220MM | 30 | Actual battery capacity (mA/h) | 1200MAH | |||||
| 2 | Net weight of product (g) | 220g | 31 | Battery temperature range | minus 20 degrees -70 degrees | ||||||
| 3 | Dustproof and waterproof level | IP65 | 32 | Battery cycle times, life | ≥500 | ||||||
| 4 | Waterproof Test Report No. | Internal detection | 33 | Battery life (h) | 15-20H | ||||||
| 5 | Whether there is USB charging function | No | 34 | Battery parameters (current, voltage) | 1.2V/1200MA | ||||||
| 6 | USB charging time | No | 35 | Battery internal resistance (mΩ) | ≤70 | ||||||
| 7 | USB interface type | No | 36 | Battery low voltage protection value (V) | 0.72V | ||||||
| 8 | Whether the USB port has waterproof treatment | No | 37 | Battery factory power percentage (%) | 60% | ||||||
| 9 | Whether equipped with USB cable/charging head | No | 38 | Charging duration (different modes) | Charge 4.5H under standard light intensity | ||||||
| 10 | Product shell material | ABS PP料 | 39 | Working hours (different modes) | 20H | ||||||
| 11 | Switch Type | ripple switch | 40 | Working mode | always bright | ||||||
| 12 | Product Switch Material/Color | Silicone White | 41 | Installation method (with rod, screw) | Screw | ||||||
| 13 | Whether there is a remote control | No | 42 | Entire lamp working environment temperature range | minus 20 degrees -70 degrees | ||||||
| 14 | Remote control type (infrared remote control/wireless remote control 433NHZ/2.4G wireless remote control) | No | 43 | Lamp bead type | Straw hat lamp beads | ||||||
| 15 | Remote control working distance | No | 44 | Number of lamp beads | 2 | ||||||
| 16 | Sensor Type/Color | No | 45 | Lamp bead lumen value | 150LM | ||||||
| 17 | Sensing distance and angle | No | 46 | Finished product color temperature | Cool white 12000K-15000K; Warm white 2800K-3200K/blue | ||||||
| 18 | Solar panel size | 77*60MM | 47 | Lamp bead temperature range | minus 40℃to 85.℃ | ||||||
| 19 | Whether the solar panel angle can be adjusted | No | 48 | Light bead luminous color | Cool white/warm white or cool white/blue light | ||||||
| 20 | Solar panel angle adjustable range | No | 49 | Lamp bead life | ≥500000H | ||||||
| 21 | Solar panel packaging method | PET Laminated | 50 | Electric parameters of lamp bead (power, voltage) | 3V/0.18W | ||||||
| 22 | Solar panel type (single crystal, polycrystalline, amorphous silicon, multi-compound) | single crystal | 51 | Luminous angle of the whole lamp | 120℃ | ||||||
| 23 | Solar panel parameters (power, voltage, conversion rate) | 2V/280MA 0.56W |
52 | Whole lamp standby power consumption (mW) | ≤ 0.024 | ||||||
| 24 | Solar panel temperature range | minus 20 ℃ to 80 ℃ | 53 | Is there a status indicator | No | ||||||
| 25 | Solar panel life | 7-8 years | 54 | LED lamp bead PCB sheet (aluminum substrate/single panel/) | Flexible board | ||||||
| 26 | Number of batteries | Section 1 | 55 | Circuit control chip model | JC001 | ||||||
| 27 | Battery Specification Type | Ni-MH | 56 | Whether there is external wiring | No | ||||||
| 28 | Battery installation method (replaceable/soldered/plugged) | Welding | 57 | External wiring length | No | ||||||
| 29 | Battery nominal capacity (mA/h) | 1200MAH | 58 | ||||||||

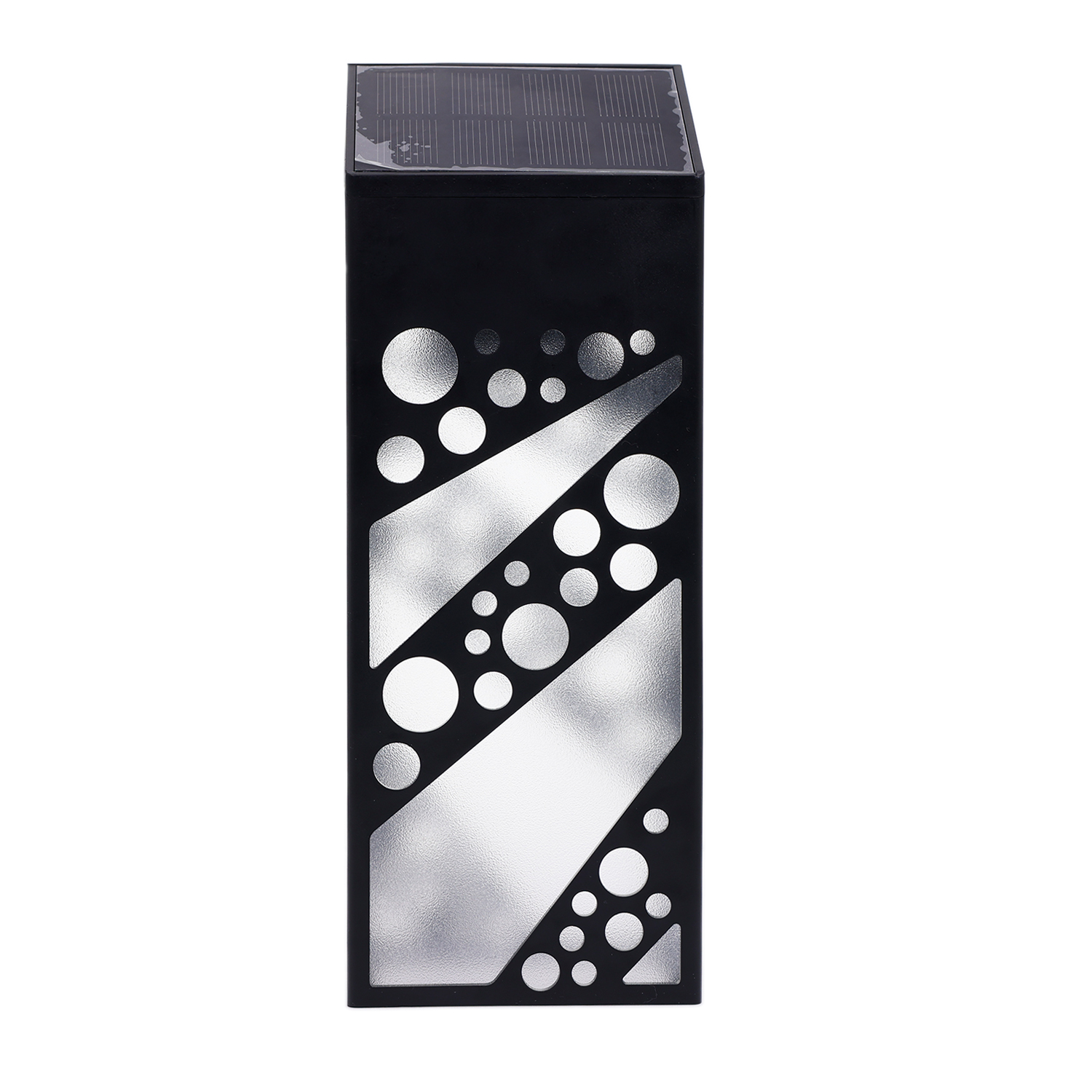

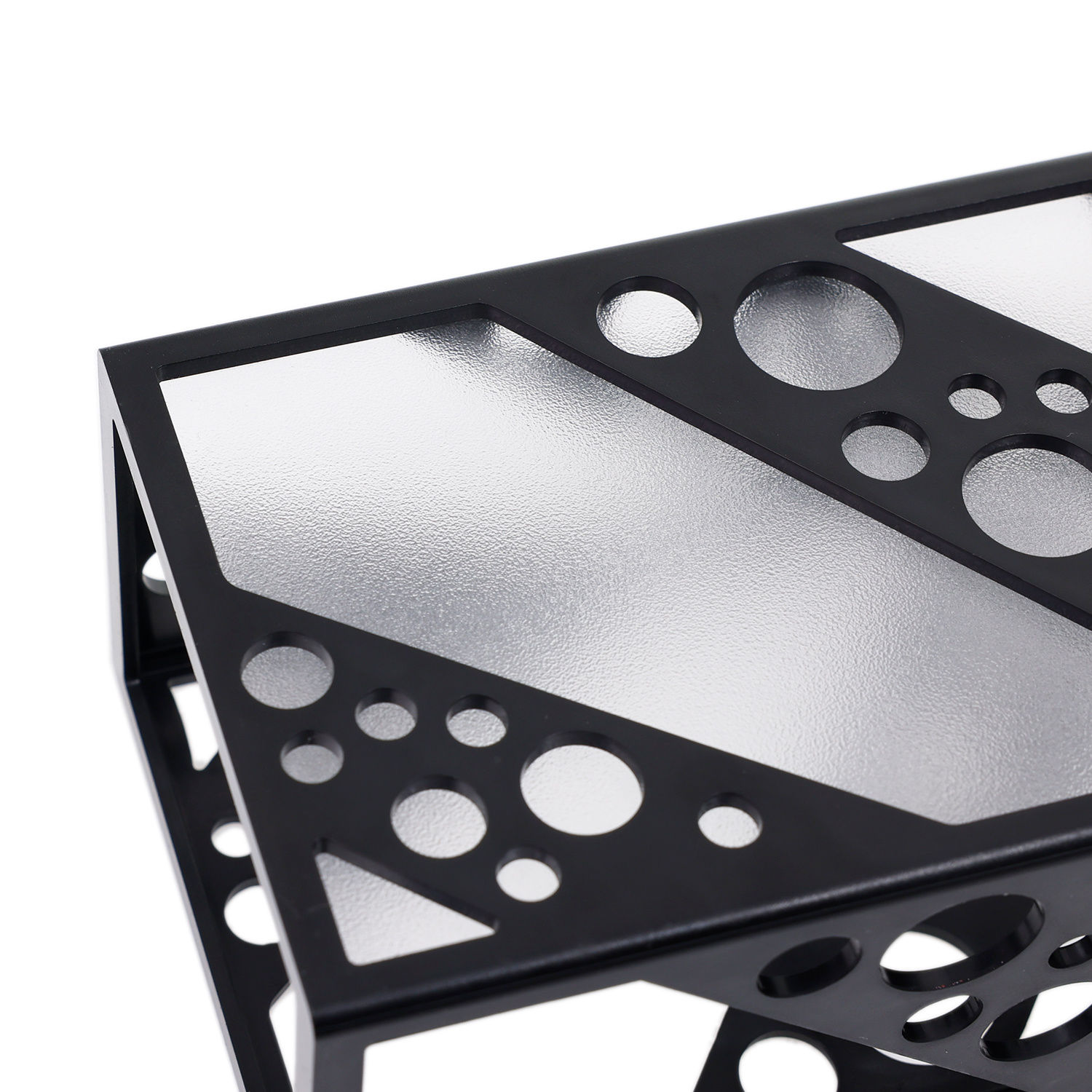

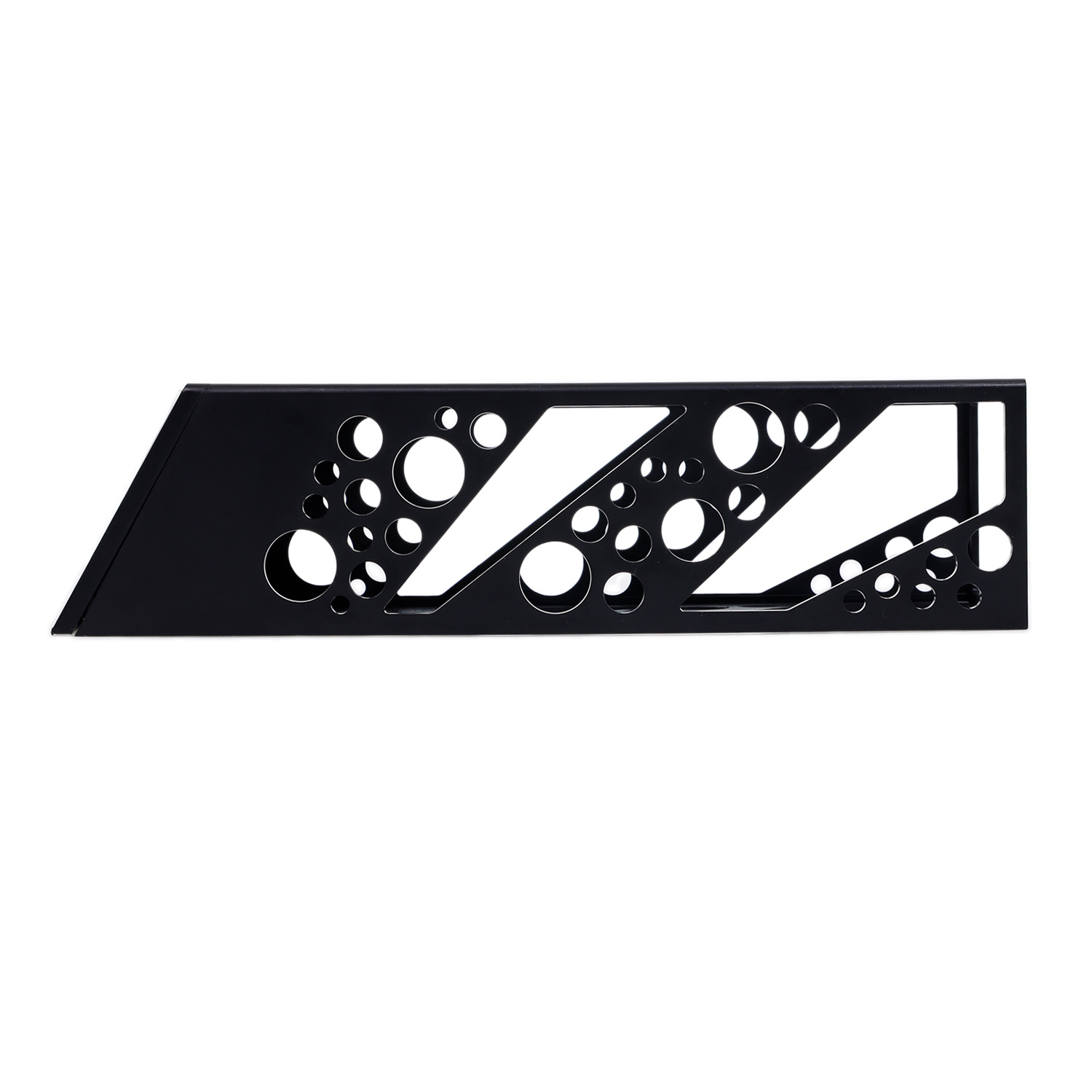

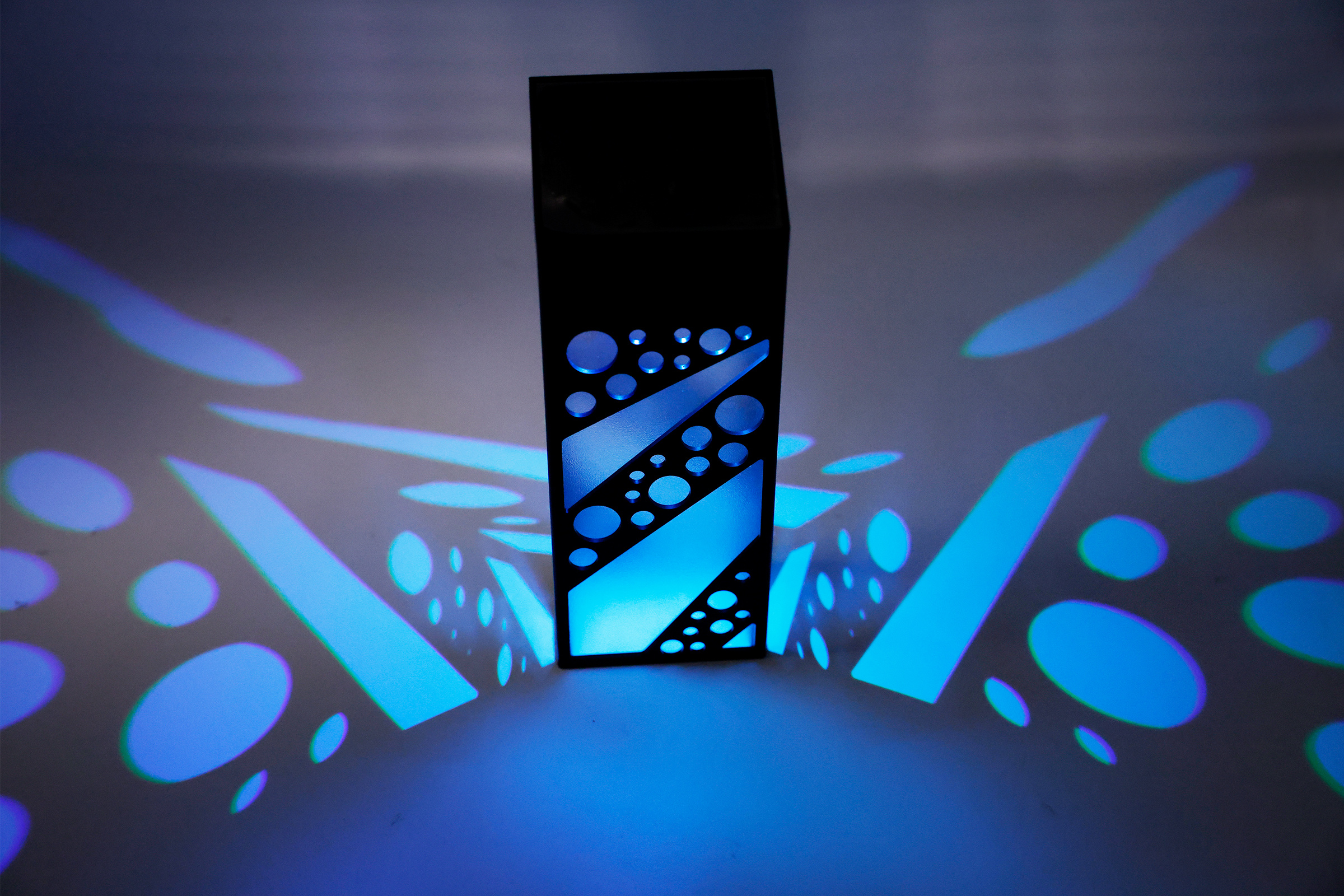

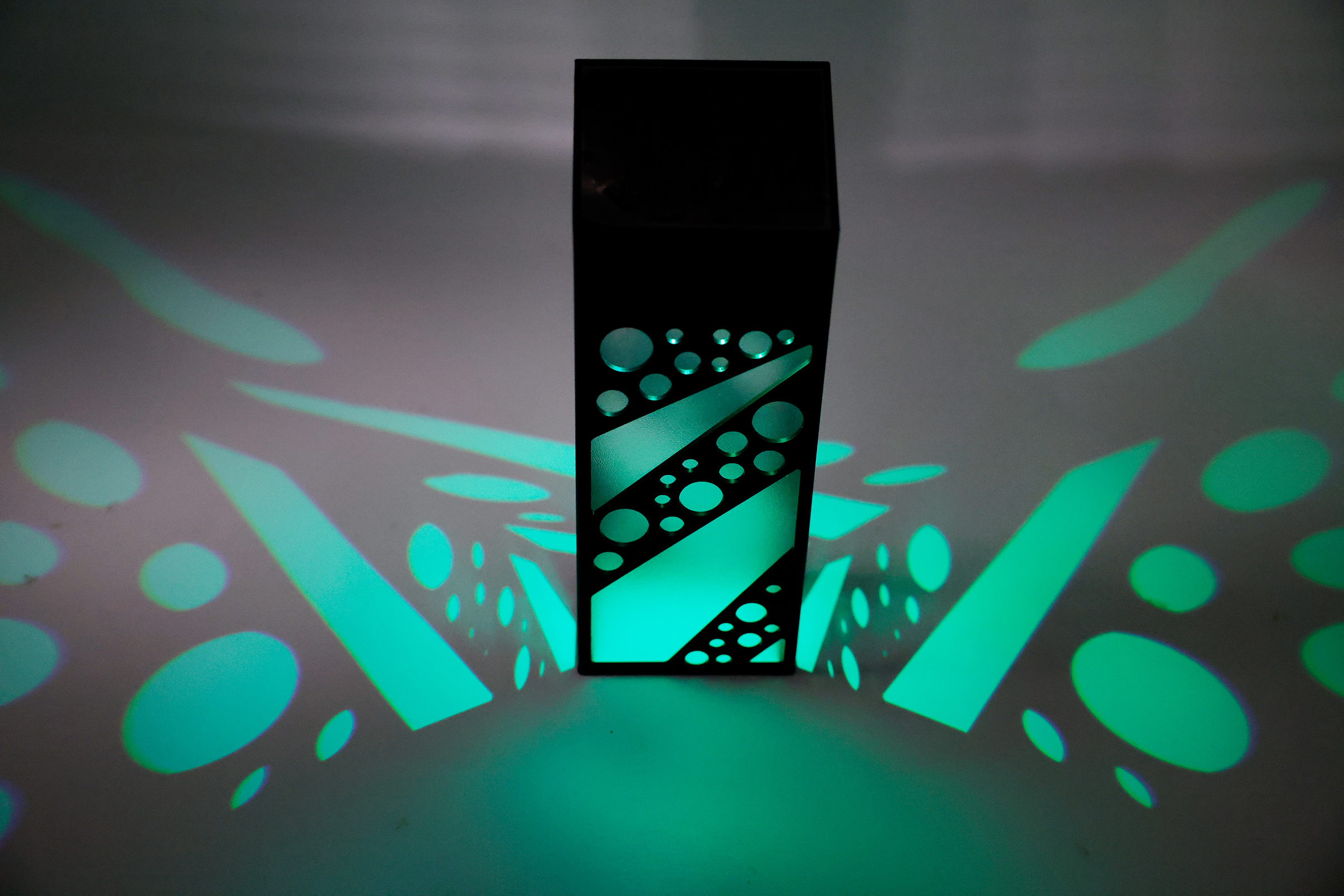

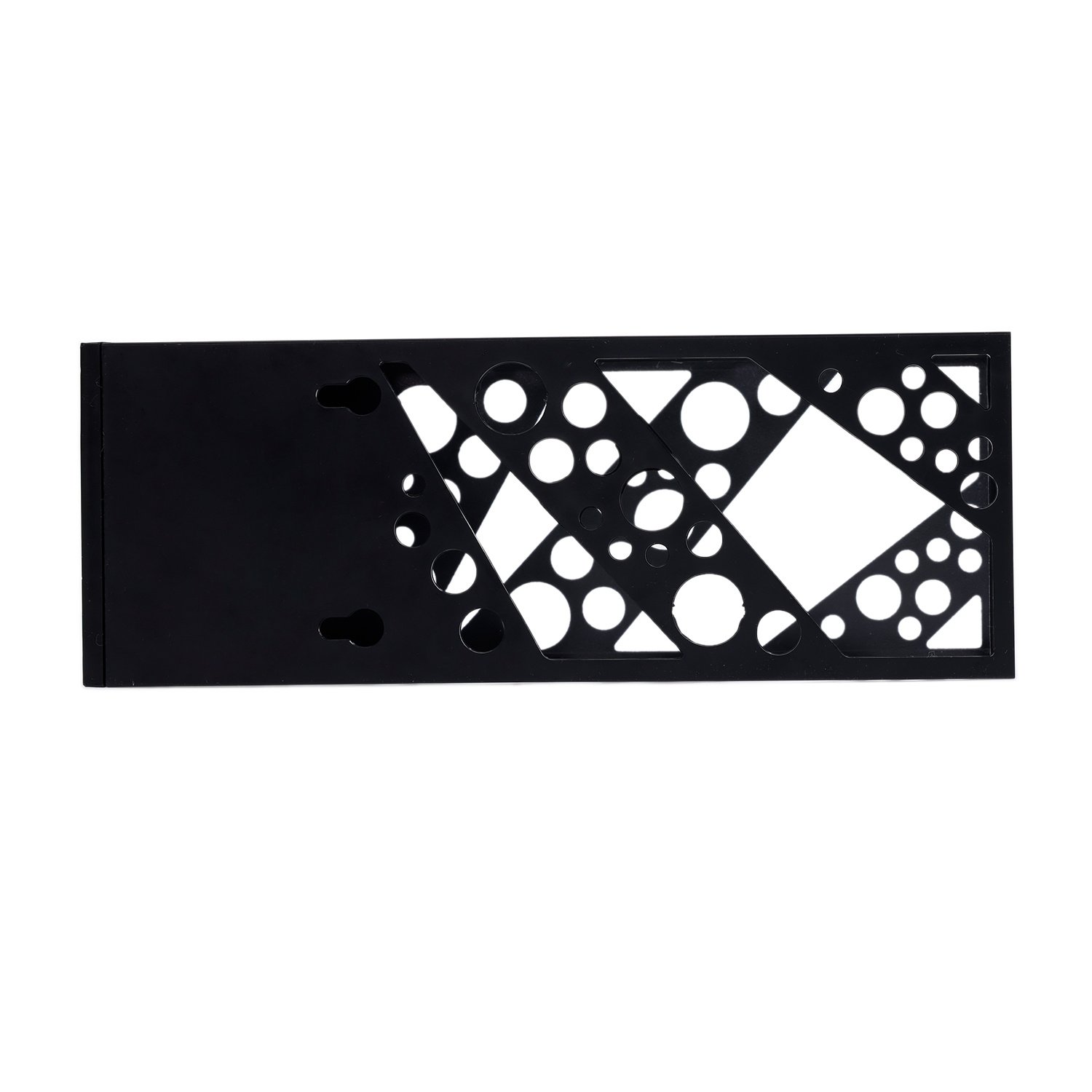

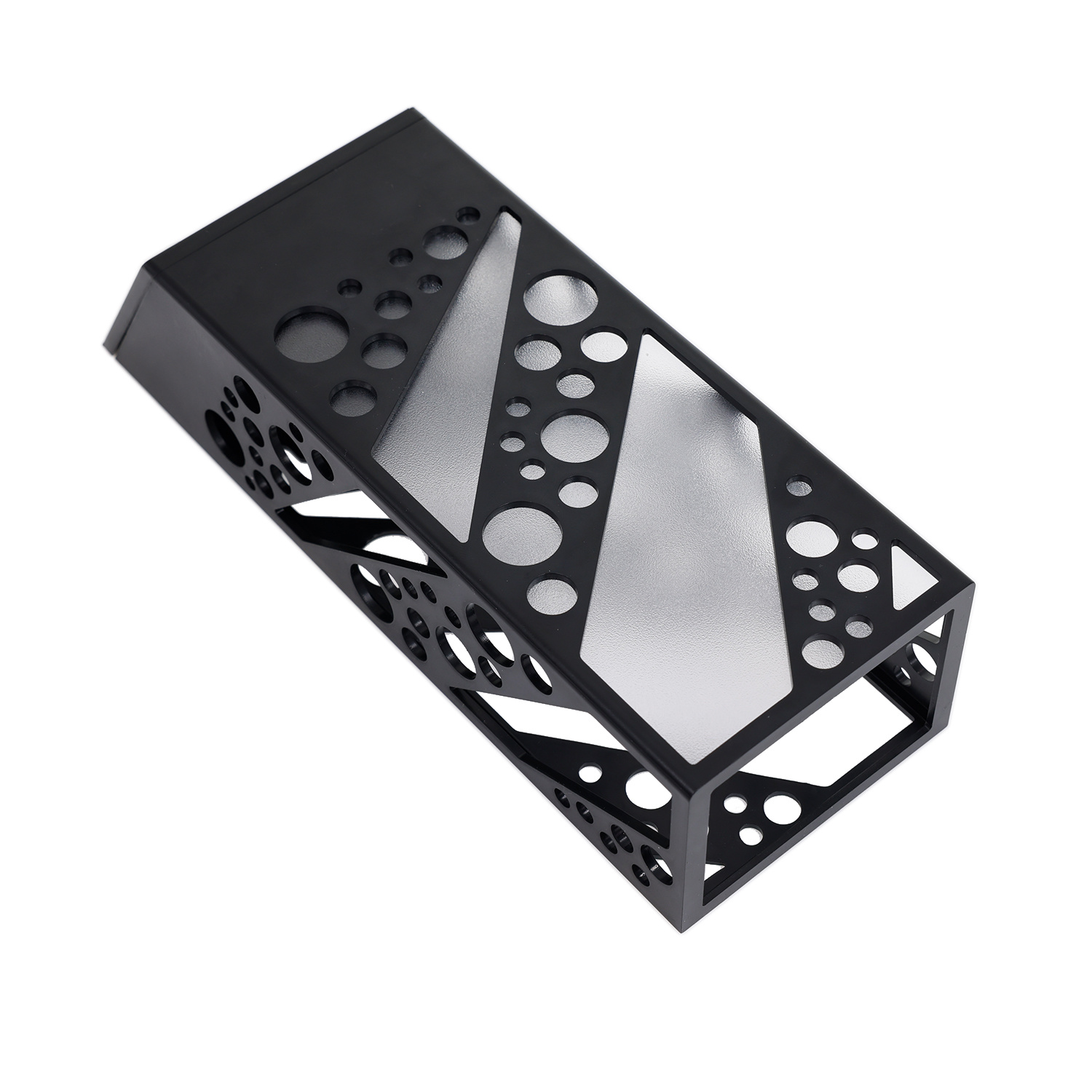

| Product Picture |  |
 |
 |
||||||||

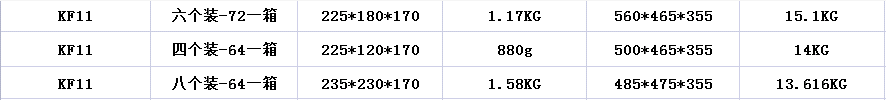

| Packaging |  |
||||||||||
